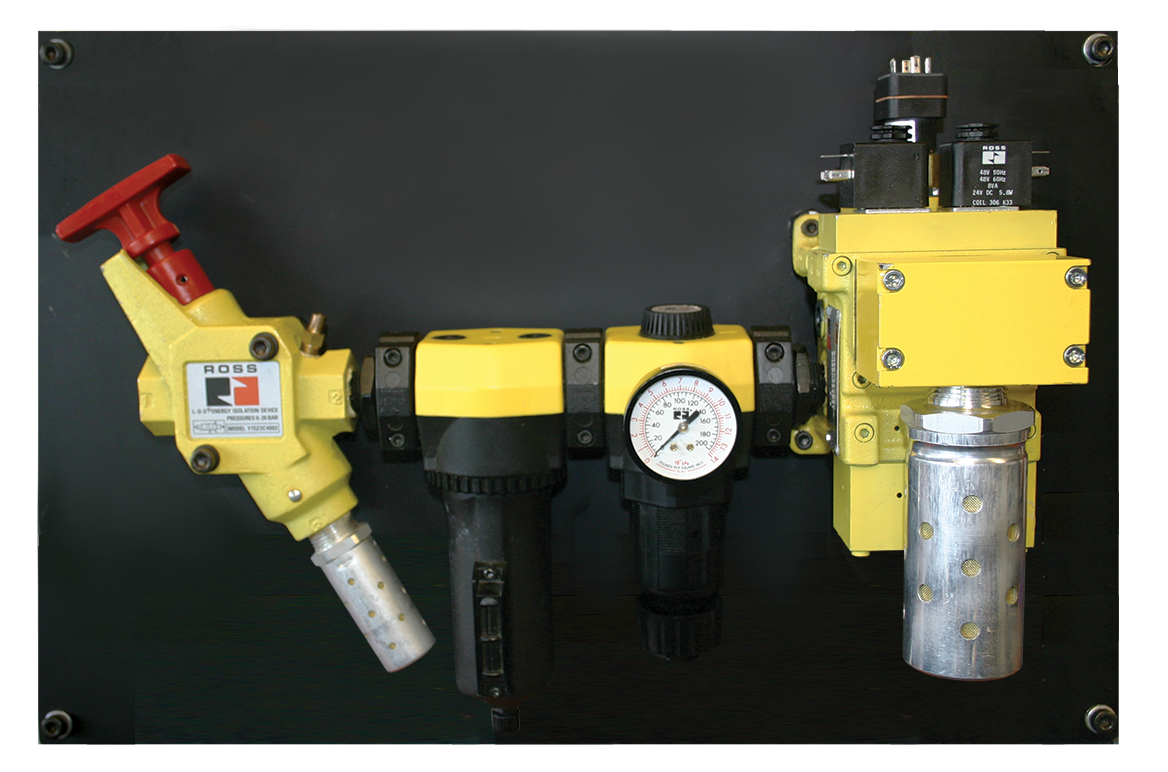

Safe Air Entry Assembly with DMC Series Safe Exhaust Valve Safety Category. 4 PL e, Internally Monitored

Product Overview

The ROSS Controls is a pre-engineered Safe Air Entry Assembly built around the DMC Series internally monitored Safe Exhaust Double Valve, delivering Safety Category 4, Performance Level e (PL e), SIL 3 through a fundamentally different monitoring architecture than externally monitored valves. Two variants are available: the DM1 Series C (automatic reset) and the DM2 Series C (dynamic memory with manual reset), both with monitoring logic integral to the valve itself.

Internal monitoring means the DMC valve's fault detection and shutdown logic is an inherent part of the valve design and cannot be inadvertently bypassed by safety controller programming errors, wiring faults, or software updates. The valve monitors valve element synchronization, detects sluggish operation within 100 to 125 milliseconds before catastrophic failure, and prevents restart until the fault condition is resolved. This provides a self-contained Category 4 safety function that requires significantly less safety controller programming complexity compared to externally monitored valves.

The DM1C variant uses automatic reset: when the fault condition clears upon removal of electrical power from both solenoids, the valve automatically returns to ready-to-run status. The DM2C variant uses dynamic memory: fault information is retained regardless of air or electrical state changes, and a deliberate manual reset procedure is required before the valve returns to service. This ensures a qualified person acknowledges and investigates the fault before machine restart. An integrated pressure switch provides both NO and NC feedback contacts for ready-to-run status indication to the machine control system.

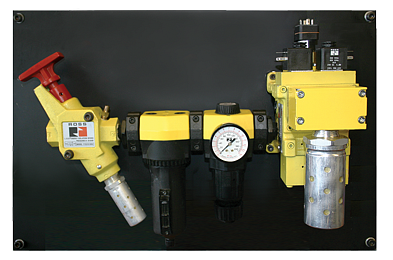

Assembly components include the Classic or Modular L-O-X Lockout valve, MD Series filter/regulator/lubricator, and the DM1C or DM2C double valve with high-flow clog-resistant silencer and PTFE backup piston rings for lubricated or unlubricated operation. Explosion-proof solenoid pilot options and custom configurations are available. SISTEMA Library data is available at rosscontrols.com.

Key Engineering Features

• Internally Monitored - Non-Bypassable Safety Logic - The DMC Series monitoring function is integral to the valve design. Unlike externally monitored valves that depend on safety controller logic, DMC internal monitoring cannot be bypassed by controller programming errors, software changes, or wiring faults. The valve itself enforces the Category 4 safety function.
• DM1C - Automatic Reset for High-Throughput Operations - DM1C Series C safe exhaust valve with automatic reset: when both solenoids are de-energized and the fault condition clears, the valve automatically returns to ready-to-run status. Minimizes production downtime in applications where faults are transient and self-clearing.
• DM2C - Dynamic Memory for Maximum Safety Assurance - DM2C Series C safe exhaust valve with dynamic memory: fault information is retained regardless of air or electrical changes. A deliberate manual reset procedure is required before the valve returns to service, ensuring a qualified person acknowledges and investigates every fault before machine restart.
• Asynchronous Fault Detection - Early Warning - The DM2C monitors valve element synchronization on every cycle, detecting and latching when elements move out of sync. Diminished performance monitoring detects sluggish operation within 100 to 125 milliseconds before catastrophic failure, enabling preventive maintenance before a complete valve failure occurs.
• Anti-Tie-Down Protection (DM2C) - Built-in features prevent control or operator errors from inadvertently bypassing safety functions, providing inherent protection against tie-down attempts that could circumvent the redundant safety design.
• Dual Poppet with PTFE Backup Rings - Dirt-tolerant dual poppet construction with wear-compensating characteristics. PTFE backup piston rings enable reliable high-flow performance with or without in-line lubrication, simplifying air system design.
• Integrated Pressure Switch with NO and NC Contacts - Mechanical pressure switch with both normally open (NO) and normally closed (NC) contacts provides real-time ready-to-run or fault status feedback to the machine control system for interlock and indicator functions. Contact rating: 0.1 A at 125/250 VAC; 0.3 A at 60 VDC.
• High-Flow Clog-Resistant Silencer - Integrated high-flow, clog-resistant exhaust silencer provides effective noise reduction while maintaining the exhaust flow capacity required for rapid downstream depressurization.
• Classic or Modular L-O-X Lockout Valve (15 Series) - OSHA 1910.147 and ANSI/ASSE Z244.1 compliant energy isolation with large push/pull handle, lockable in OFF only, full-size exhaust port, integrated sensing port, and fluorocarbon slipper seals.
• Factory Assembled, Tested, and Ready to Install - Complete Series assemblies are factory configured, piped, leak tested, and function verified. Single-source responsibility eliminates component compatibility concerns and simplifies procurement.
• Flexible Port Options on Both Sides - DMC valves feature inlet and outlet ports on both sides with plugs for unused ports, plus captive valve-to-base mounting screws, providing installation flexibility in tight machine spaces.

Technical Specifications

General Specifications

Certifications & Compliance

Typical Applications & Industries

Automotive Manufacturing and Stamping

• Automotive body shop robotic welding cells and stamping operations where Category 4, PL e with internal monitoring is required and the safety engineer prefers a valve that inherently prevents bypass rather than relying on controller programming for monitoring.
• Automotive press lines with high cycle rates (nop > 500,000 per year) where the DM2C dynamic memory ensures every fault is investigated by maintenance personnel before machine restart, preventing production pressure from overriding fault investigation.
• Paint booth and material handling systems where explosion-proof solenoid variants of the DMC valve provide Category 4 internal monitoring in classified hazardous areas.
• Engine assembly and powertrain lines where multiple safe air entry assemblies isolate different machine zones, allowing zone-by-zone maintenance access while adjacent zones remain operational.

Metal Fabrication, Heavy Industry, and Forming

• Hydraulic press brakes with pneumatic counterbalance systems where DM2C dynamic memory prevents press restart after a fault until a qualified press technician performs the reset and documents the event, satisfying ANSI B11.3 requirements.
• Forging and stamping equipment where the DM2C anti-tie-down protection prevents tooling setters from short-circuiting the safe exhaust function during die change procedures.
• Steel service centers and coil processing lines where DGUV certified Category 4 pneumatic safety is required for CE declaration and export to European markets.
• Mining and quarrying equipment with high-energy pneumatic actuators where the DM2C fault latch prevents unnoticed performance degradation from causing a catastrophic failure during production.

Packaging, Food Processing, and Pharmaceutical Manufacturing

• High-speed packaging lines where Category 4 internally monitored safe exhaust simplifies the safety controller design: the safety PLC does not need to implement monitoring logic beyond reading the DM1C or DM2C ready-to-run feedback contact.
• Food processing and pharmaceutical equipment where the DM2C dynamic memory ensures fault events are logged and investigated before machine restart, supporting HACCP and quality management systems.
• Beverage and dairy processing lines with frequent sanitation wash-down cycles where the IP65 rated enclosure and corrosion-resistant cast aluminum valve body maintain performance in wet environments.
• Medical device manufacturing with strict documentation requirements where DM2C fault history and manual reset procedure provides a natural audit trail of safety events.

Ordering and Model Number Configuration

The Series model number encodes the DMC valve type (DM1C or DM2C), port size and thread, voltage, electrical connection type, FRL configuration, lockout valve type, and optional accessories. Consult ROSS Controls for configurations not shown in standard tables. Custom designs and explosion-proof solenoid pilots are available.

Specify DM1C for automatic reset (no fault latch) or DM2C for dynamic memory (manual reset required after every fault).

Port sizes available: 1/4, 3/8, 1/2, and 3/4 inch NPT or G (BSPP).

Standard voltage: 24 VDC. Also available: 110 VAC and 220 VAC. For other voltages, consult ROSS.

DM1C electrical connection: M12 connector (IP67). DM2C: EN 175301-803 Form A or Form C.

Pressure switch contacts (NO and NC) provide ready-to-run or fault feedback.

Lockout valve position configurable before or after FRL.

Explosion-proof solenoid pilot available - consult ROSS.

Custom designs available (ROSS/FLEX solutions) including non-standard port locations, integrated brackets, stainless steel, special voltages.

SISTEMA Library and Integration Guide downloadable at rosscontrols.com.

Accessories

Pressure Gauges and Indicators

Prewired Electrical Connectors

Prewired connector sets for solenoid and pressure switch feedback connections.

Exhaust Silencers

External silencers for remote exhaust routing or additional noise attenuation.

Warning: Exhaust silencer flow capacity must be at least equal to valve exhaust capacity. Clogged silencers impair safe exhaust function.

Lockout and Mounting Accessories

Replacement Filter Elements

Related Products & Accessories

• 1282 Series Safe Air Entry Assembly with MDC1 (Category 1, PL c) - Entry-level assembly for Category 1, PL c with MDC1 safe exhaust valve. https://www.rosscontrols.com/en/series/1282-safe-air-entry-assembly-with-mdc1-series-safe-exhaust-valve
• 1283 Series Safe Air Entry Assembly with MDC Series (Category 1 and 2, PL c) - Scalable assembly for Category 1 or 2, PL c with MDC1 or MDC2 valve. https://www.rosscontrols.com/en/series/1283-safe-air-entry-assembly-with-mdc-series-safe-exhaust-valve
• 1284 Series Safe Air Entry Assembly with SV27 Series (Category 2, PL c, SIL 2) - Category 2, PL c assembly with SV27 force-guided DPST sensing valve. https://www.rosscontrols.com/en/series/1284-safe-air-entry-assembly-with-sv27-series-safe-exhaust-valve
• 1285 Series Safe Air Entry Assembly with M35 Series (Category 4, PL e, External Monitor) - Category 4, PL e assembly with M35 dual poppet double valve, externally monitored. https://www.rosscontrols.com/en/series/1285-safe-air-entry-assembly-with-m35-series-safe-exhaust-valve
• DMC Series Double Valves Catalog - Complete technical catalog for DM1C and DM2C Series C Safe Exhaust Double Valves. https://www.rosscontrols.com/en/documents/338
• 15 Series L-O-X Lockout Valves - Classic and Modular L-O-X energy isolation valves. https://www.rosscontrols.com/en/series/1287-lockout-valves-15-series

Frequently Asked Questions (FAQ)

Q: What is the fundamental difference between the series (DMC, internally monitored) and the 1285 Series (M35, externally monitored) for Category 4 applications?

A: Both achieve Category 4, PL e, SIL 3. The critical difference is where the monitoring logic resides. In the 1285 Series (M35), the external safety controller reads pressure sensor signals and implements fault detection and machine halt logic through controller programming. In the series (DMC), the monitoring logic is integral to the valve. The valve monitors itself, detects faults, and prevents restart without any safety controller programming required for the monitoring function. Internal monitoring cannot be bypassed by controller errors, software changes, or wiring faults. This simplifies safety controller design and provides a higher confidence level that the monitoring function will always be active.

Q: When should I specify DM1C versus DM2C?

A: Choose DM1C (automatic reset) when transient faults are acceptable to clear automatically without personnel intervention - for example, in applications with occasional momentary electrical interference where the valve element may occasionally lag but the fault is not indicative of a developing mechanical problem. Choose DM2C (dynamic memory) when every fault must be investigated by a qualified technician before machine restart - for example, in high-risk applications, applications where fault history is required for safety audits, or where production pressure might otherwise cause operators to restart machines without investigating faults. The DM2C dynamic memory is also preferred when ANSI B11 or DGUV regulations require documented fault investigation.

Q: How does the DM2C dynamic memory function work?

A: The DM2C stores fault information in its internal monitoring logic regardless of air or electrical changes. If a fault occurs (valve elements move out of sync, sluggish operation detected, or abnormal pressure state), the valve latches the fault and prevents restart. The fault information is retained even if power is cycled or the air supply is removed. A deliberate manual reset procedure - performed by a qualified person who has investigated and cleared the fault condition - is required before the valve returns to ready-to-run status. This prevents the dangerous practice of cycling power to clear a fault without investigation.

Q: What feedback does the DMC valve provide to the machine controller?

A: The integrated pressure switch provides both normally open (NO) and normally closed (NC) contacts. The switch indicates ready-to-run status (valve in correct state for machine operation) or fault status (valve has detected an abnormal condition). These contacts connect to the machine control system for interlock functions (preventing machine start until ready-to-run) and indicator functions (fault indicator light or alarm). Contact rating: 0.1 A at 125/250 VAC; 0.1 A at 30 VDC; 0.3 A at 60 VDC.

Q: What does 'asynchronous fault detection' mean for the DM2C?

A: Asynchronous fault detection means the DM2C monitors whether both valve elements shift synchronously (at the same time) on every machine cycle, without requiring a separate synchronism test sequence. If the elements move out of sync - indicating one element is beginning to degrade or stick - the valve detects and latches the fault. The DM2C can detect sluggish operation within 100 to 125 milliseconds before the valve element fails completely, enabling preventive maintenance scheduling rather than emergency breakdown response.

Q: What is anti-tie-down protection on the DM2C?

A: Anti-tie-down protection refers to built-in valve design features that prevent safety controls or operator techniques from inadvertently holding the valve in the energized (pressurized) position or bypassing the safe exhaust function. In dual solenoid safety valves, some improper control schemes involve energizing solenoids in sequence ('tying down' one before activating the other) to avoid two-hand control requirements. The DM2C design detects and prevents these bypass attempts.

Q: Can the DMC valve be used in hazardous locations?

A: Explosion-proof solenoid pilot versions of the DMC valve are available for hazardous area installations classified as Class I, Division 1 or 2. Custom configurations are also available. Contact ROSS Controls for hazardous area product configurations and applicable certifications.

Q: What is the diagnostic coverage for the DMC valve?

A: The DMC Series achieves up to 99% diagnostic coverage (DC high) through its internal monitoring system, meeting the Category 4 requirement of ISO 13849-1:2015 which mandates DC >= 99% for Category 4 architectures.

Q: What OSHA and ANSI standards does the series assembly support compliance with?

A: The Series assembly supports compliance with OSHA 1910.147 (Control of Hazardous Energy / Lockout-Tagout) through the L-O-X lockout valve, ANSI/ASSE Z244.1 (Lockout/Tagout and Alternative Methods) for energy isolation, ANSI/PMMI B155.1 (Packaging Machinery Safety), CSA Z142 (Code for Power Press Operation), and ANSI B11 Series machine tool standards. The DMC valve's Category 4, PL e, SIL 3 certification covers ISO 13849-1:2015 and IEC 61508 requirements for safety-related control systems.

Q: What flow capacity does the DM1C valve provide?

A: The DM1C valve provides Cv 2.2 in the supply direction (ports 1-2) and Cv 3.6 in the exhaust direction (ports 2-3). The higher exhaust Cv relative to supply Cv ensures rapid downstream pressure removal during safe exhaust function activation.

Q: Does the DMC valve require in-line lubrication?

A: No. PTFE backup piston rings in the DMC valve enable reliable high-flow performance with or without in-line lubrication. If a lubricator is included in the FRL for other downstream components, the DMC valve is compatible with petroleum-based lubricants per DIN 51519, viscosity classes 32 to 46.

Q: Can I use the series assembly to control mechanical power press clutch/brake mechanisms?

A: No. Per ROSS Controls specifications and applicable safety regulations, these valve assemblies are not designed for controlling clutch/brake mechanisms on mechanical power presses. Contact ROSS Controls for appropriate press control valve products.

Q: What is the operating temperature range?

A: The DM1C and DM2C valve ambient temperature range is 15 to 122 F (-10 to 50 C). Media temperature range is 40 to 175 F (4 to 80 C). These ranges cover the majority of industrial manufacturing environments. For applications outside this range, consult ROSS Controls.

Q: Are SISTEMA Library files available?

A: Yes. SISTEMA Library data for both DM1C and DM2C variants is downloadable at rosscontrols.com. The files provide PFH, MTTFD, B10, and DC values for direct import into SISTEMA software calculations to verify Category 4, PL e, SIL 3 achievement.

Installation & Maintenance Guidelines

• Mount in any orientation; vertical preferred for condensate drainage.
• Supply filtered compressed air meeting ISO 8573-1 Class 7:4:4 minimum.
• Do not restrict supply lines or exhaust ports. Back pressure on exhaust port impairs safe exhaust performance.
• Connect both DMC solenoids to machine safety control system. Both must be energized and de-energized synchronously. Do not apply asymmetric solenoid control.
• Connect DMC pressure switch NO and NC contacts to machine control system for ready-to-run status indication and machine enable interlock.
• For DM2C: establish and document the manual reset procedure. Only qualified maintenance personnel should perform the reset after investigating and clearing the fault condition.
• Position L-O-X lockout valve per facility LOTO program. Lockout valve is an energy isolation device - NOT an emergency stop.
• For modular mounting to MD Series FRL units, use bracket, screw, clamp, and mounting adapter accessories.
• Verify exhaust silencer flow capacity is at least equal to valve exhaust capacity.
• After installation, test automatic reset function (DM1C): de-energize both solenoids, verify valve returns to ready-to-run. For DM2C: perform simulated fault test, verify fault is latched, perform manual reset procedure.
• Test machine interlock: verify machine cannot start when DMC pressure switch indicates fault condition.
• Establish periodic inspection schedule per DMC Installation Instructions for filter elements, solenoids, pressure switch contacts, and electrical connections.

Warranty & Global Support

ROSS Controls provides a one-year warranty on all products, covering defects in material and workmanship from date of purchase.

Global technical support available through ROSS offices in USA, Canada, Brazil, Germany, France, UK, India, China, and Japan.

Customer Service: 1-800-GET-ROSS (1-800-438-7677). Technical Service: 1-888-TEK-ROSS (1-888-835-7677).

DMC Series Installation Instructions and Integration Guide available from ROSS Controls.

For complete technical data, dimensional drawings, SISTEMA Library files, and product configurator, visit rosscontrols.com.

Download Catalog: https://www.rosscontrols.com/en/documents/338
