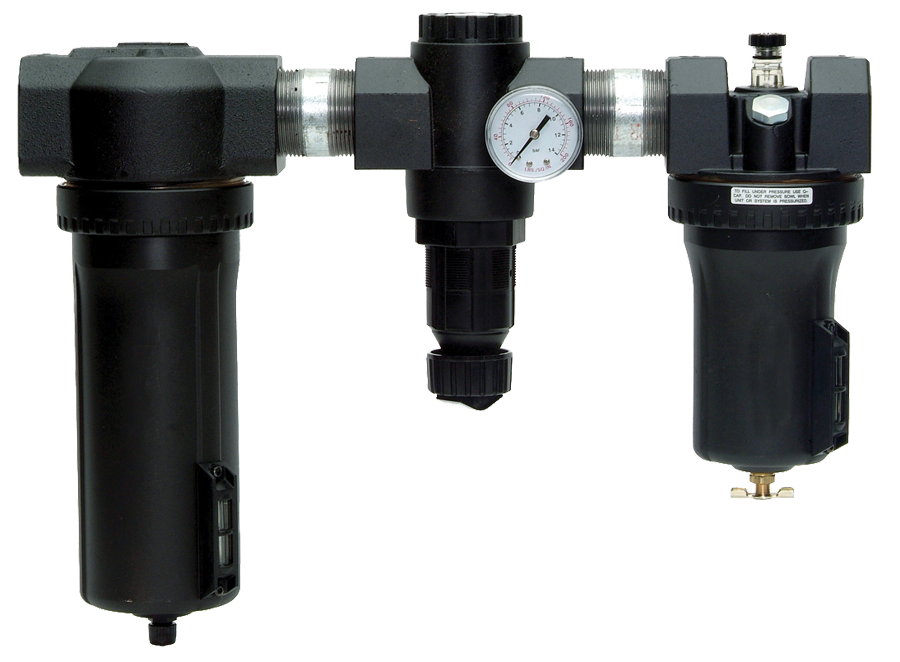

Filter Regulator Lubricator High-Capacity Product Overview

The High-Capacity Filter, Regulator, and Lubricator components are offered individually, allowing for customized air quality control solutions. These units are designed for inline mounting, providing a compact and efficient solution. You have options for the lubricator type: it can be a wick-feed or sight-feed design, catering to different lubrication needs.

For the filter bowl, you can choose between high-strength polycarbonate plastic bowls with steel shatterguard or metal bowls with clear nylon sight glass, accommodating different environmental conditions. For filter maintenance, options include internal automatic drain, manual drain, external automatic drain, or electronic drain, providing flexibility for your air quality control needs. In this series, you can also select between a self-relieving or non-relieving regulator based on your specific requirements. These units come equipped with a pressure gauge for accurate monitoring, making the High-Capacity Series a versatile and efficient solution for air quality and lubrication management.

Please refer to the side and below for Filter Regulator Lubricator High-Capacity catalogs, installation instructions, and technical data. Additionally, you have the option to filter through all available Filter Regulator Lubricator High-Capacity variant that meets your requirements.

Series Overview ❯

Product Overview

The ROSS Controls High-Capacity Series is a heavy-industrial Filter Regulator Lubricator (FRL) combination product line for 3/4" to 1-1/2" port size compressed air systems. The High-Capacity Series delivers combined filtration, pressure regulation, and lubrication with maximum flow capacity up to 495 scfm (14018 l/min), making it the appropriate selection for plant-level main air preparation, large machine air supply stations, and centralized FRL installations serving high-demand compressed air systems.

The High-Capacity Series FRL components are offered individually as a filter, regulator, and lubricator, and are designed for inline mounting to form a complete high-flow air preparation station. Individual components can also be installed as standalone units where only a single air treatment function is required at the specified port size and flow rate.

The filter component is available with high-strength polycarbonate plastic bowls with steel shatterguard or metal bowls with clear nylon sight glass. The High-Capacity Series extends the drain options to include internal automatic drain, manual drain, external automatic drain, and electronic drain, providing the most comprehensive condensate management range in the ROSS Controls FRL product line. The piston-type regulator provides robust high-flow pressure regulation with self-relieving or non-relieving function.

The lubricator is available in both wick-feed and sight-feed designs, giving engineers the choice between tamper-resistant internal oil delivery (wick-feed) and visible adjustable oil injection (sight-feed) based on application monitoring requirements. The High-Capacity Series is the definitive selection for main plant air preparation headers, industrial compressor system air treatment, large pneumatic presses, and heavy-duty industrial machinery with 3/4" to 1-1/2" supply connections.

Key Engineering Features

High-Capacity Flow to 495 scfm at 1-1/2" Port - Delivers up to 495 scfm (14018 l/min), making the High-Capacity Series the appropriate FRL selection for 3/4" through 1-1/2" port size circuits and plant-level air preparation stations where the flow demand is beyond the range of modular mid-size FRL systems.
Extended Port Size Range to 1-1/2" - Port sizes from 3/4" to 1-1/2" address the largest compressed air supply circuits in industrial plants and heavy manufacturing, including main air headers and large machine tool supply connections.
Inline Mounting for Large Pipe Sizes - Inline design allows the High-Capacity Series FRL components to be installed directly in 3/4" to 1-1/2" compressed air supply lines without requiring a separate modular bracket, with the supply pipe providing the mechanical support.
Polycarbonate Bowl with Shatterguard or Metal Bowl with Sight Glass - High-strength polycarbonate bowls with steel shatterguard provide visual condensate level monitoring with mechanical protection; metal bowls with clear nylon sight glass deliver full metal construction with retained visual access for higher-pressure and higher-temperature applications.
Four Drain Types Including External Automatic Drain - Internal automatic drain, manual drain, external automatic drain, and electronic drain options provide the complete range of condensate management strategies. The external automatic drain expels condensate through an external piped connection, suitable for applications where local drain discharge is impractical.
Piston-Type Regulator for High-Flow Stability - Piston-type regulator provides stable, robust pressure regulation at high flow rates typical of 3/4" to 1-1/2" supply circuits, maintaining regulated output pressure under the high and variable flow demands of large industrial pneumatic systems.
Wick-Feed or Sight-Feed Lubricator Options - Wick-feed lubricator provides tamper-resistant internal oil delivery via an absorbent wick mechanism; sight-feed lubricator provides visible oil delivery confirmation through a sight tube for operator-observed lubrication rate monitoring.
Self-Relieving or Non-Relieving Regulator - Self-relieving function vents excess downstream pressure to atmosphere when set point is reduced; non-relieving option retains downstream pressure for systems where venting is not permitted.
Individual Component Availability - Each filter, regulator, and lubricator is available as an individual unit for standalone installation or assembly into complete high-capacity FRL stations.

Technical Specifications

General Specifications

Parameter	Specification
Series	High-Capacity Series
Product Type	Filter Regulator Lubricator (FRL) Combination
Port Sizes	3/4", 1", 1-1/4", 1-1/2"
Maximum Flow	495 scfm (14018 l/min)
Mounting Options	Inline
Filter Bowl Material	High-strength polycarbonate with steel shatterguard; Metal with clear nylon sight glass
Filter Drain Options	Internal automatic drain; Manual drain; External automatic drain; Electronic drain
Regulator Type	Piston-type (self-relieving standard; non-relieving optional)
Lubricator Types	Wick-feed; Sight-feed
Pressure Gauge	Included as standard
Maximum Operating Pressure - Polycarbonate Bowl	150 psig (10 bar)
Maximum Operating Pressure - Metal Bowl	250 psig (17 bar)
Operating Temperature - Polycarbonate Bowl	40 to 125 degrees F (4 to 52 degrees C)
Operating Temperature - Metal Bowl	40 to 150 degrees F (4 to 66 degrees C)
Flow Media	Filtered compressed air
Body Material	Aluminum

Certifications & Compliance

Certification/Standard	Detail
Product Standards	Designed and manufactured to ROSS Controls quality standards for pneumatic air preparation components.
CE Marking	CE conformity available for applicable configurations sold in European markets, satisfying EU Machinery Directive requirements for pneumatic components.
Operating Pressure Rating	Maximum 150 psig (10 bar) with polycarbonate bowl; 250 psig (17 bar) with metal bowl, providing the highest pressure rating in the ROSS Controls FRL product line.

Typical Applications & Industries

Plant-Level Main Air Preparation

Factory main compressed air distribution header treatment where the High-Capacity Series FRL station provides first-stage filtration, pressure regulation, and lubrication for the entire plant compressed air system downstream of the compressor room.
Large industrial plant air preparation at 1" to 1-1/2" header branch connections, installing individual High-Capacity Series FRL stations at each zone or department supply point to provide targeted air treatment for specific production areas.
Compressor room aftercooler and separator downstream filtration and pressure regulation where high-flow capacity at 1-1/2" supply connections is required at the plant air distribution interface.
Industrial facility maintenance and service air distribution headers where a central High-Capacity Series FRL station provides filtered, regulated, and lubricated air to all downstream tool drops and air-powered equipment.

Heavy Industrial Machinery

Large hydraulic press and metal forming press pneumatic circuits with 1" to 1-1/2" supply connections for die cushion, clutch-brake control, material feed, and scrap removal pneumatics requiring high-flow filtered and regulated air.
Industrial forge press, forging hammer, and upset forger pneumatic circuits with high-demand air consumption requiring High-Capacity Series FRL protection at the machine main air supply inlet.
Rotary indexing machines, transfer machines, and dial index assembly systems with multiple simultaneous pneumatic actuations sharing a 1" to 1-1/2" main supply requiring the full flow capacity of the High-Capacity Series.
Industrial sand blasting cabinets, media blasting equipment, and abrasive blast cleaning systems with 1" and 1-1/2" supply connections where a High-Capacity Series FRL filters and regulates the high-volume abrasive blast air supply.

Automotive and Transportation Manufacturing

Automotive assembly plant main air preparation stations on primary compressed air distribution mains serving body shop, paint shop, and assembly areas with 1" to 1-1/2" supply branch connections.
Heavy truck and off-highway vehicle manufacturing with large pneumatic actuator circuits for frame assembly jigs, body panel clamping, and powertrain assembly fixtures requiring high-flow FRL supply.
Rail vehicle assembly and heavy transport equipment manufacturing with large pneumatic tooling circuits and high-flow assembly automation requiring High-Capacity Series FRL combinations at major supply stations.
Automotive proving ground and vehicle test facility pneumatic systems with large air consumers including ride simulator actuators, chassis test equipment, and powertrain test stand pneumatics.

Steel, Metals, and Mining

Steel mill and metals processing plant compressed air systems with 1" and 1-1/2" supply connections to rolling mill pneumatics, scrap handling, and continuous casting air preparation requiring High-Capacity Series FRL treatment.
Mining equipment and mine compressed air distribution systems where High-Capacity Series FRL stations at 1-1/2" branch connections provide filtered, regulated, and lubricated air to pneumatic rock drills, bolters, and material handling equipment.
Foundry air preparation for pneumatic molding machines, shakeout systems, and shot blast equipment with large pneumatic actuators requiring high-flow FRL supply at 1" to 1-1/2" connections.
Aluminum smelter and metal refinery compressed air systems with high-flow pneumatic circuits for anode handling, cell operations, and material transport requiring High-Capacity Series FRL protection.

Woodworking and Lumber Industry

Large-format CNC machining centers and panel processing lines in engineered wood products and furniture manufacturing with 1" to 1-1/2" compressed air supply circuits requiring High-Capacity Series FRL flow capacity.
Sawmill and lumber processing facility compressed air systems with pneumatic cant turning, log handling, and sorting equipment requiring high-flow filtered and regulated air from a central FRL station.
Particle board, MDF, and OSB manufacturing with pneumatic conveying, forming, and pressing systems using high-flow compressed air circuits at 1" and 1-1/2" supply connections.

Compressed Air Distribution and Energy Management

Industrial compressed air distribution systems implementing zone-level FRL treatment where High-Capacity Series stations at 1-1/2" main headers provide centralized air preparation for entire production zones.
External automatic drain applications where condensate must be piped away from the FRL location to a remote drain point, such as overhead installations, enclosed enclosures, or locations where floor drainage is not available.
High-pressure applications requiring the 250 psig metal bowl rating of the High-Capacity Series, such as process pneumatics operating above the 150 psig ceiling of polycarbonate bowl FRL systems.
Industrial energy management programs targeting compressed air system efficiency where electronic drain installation on High-Capacity Series filters reduces air waste at high-flow FRL stations.

Ordering and Model Number Configuration

The High-Capacity Series FRL components are ordered individually as filter, regulator, or lubricator units and installed as inline assemblies. Specify port size, bowl material, drain type, regulator function, and lubricator type (wick-feed or sight-feed). Contact ROSS Controls at (800) 438-7677 or visit rosscontrols.com for complete ordering information.

Port sizes available: 3/4", 1", 1-1/4", and 1-1/2" NPT.

Filter bowl material: high-strength polycarbonate with steel shatterguard (150 psig maximum), or metal with clear nylon sight glass (250 psig maximum).

Drain options: internal automatic drain, manual drain, external automatic drain, or electronic drain. Select external automatic drain for overhead or enclosed installations where drain discharge must be piped to a remote location.

Regulator type: piston-type. Self-relieving (standard) or non-relieving option.

Lubricator type: wick-feed or sight-feed. Select sight-feed for applications requiring visual confirmation of oil delivery. Select wick-feed for tamper-resistant internal oil delivery.

For complete catalog part numbers, dimensional drawings, and configuration specifications, visit rosscontrols.com or contact ROSS Controls technical sales.

Accessories

Mounting Hardware and Pipe Support Brackets

Mounting brackets and pipe support hardware for High-Capacity Series FRL components at 3/4" to 1-1/2" inline installations where additional mechanical support beyond the pipe connection is required.

External Automatic Drain Piping Kits

Piping kits and fittings for routing the external automatic drain discharge to a remote drain point on High-Capacity Series filter units with external automatic drain connections.

Electronic Drain Controllers

Timer-based and demand-sensing electronic drain controllers for High-Capacity Series filter units with electronic drain connections.

Replacement Filter Elements

Replacement filter elements for the High-Capacity Series filter units in 5-micron and 40-micron particulate grades for all port sizes.

Pressure Gauges

Replacement and additional pressure gauges for High-Capacity Series regulator units in appropriate dial sizes for 3/4" to 1-1/2" port size applications.

Frequently Asked Questions (FAQ)

Q: What is the maximum flow capacity of the High-Capacity Series FRL?

A: The High-Capacity Series delivers maximum flow of 495 scfm (14018 l/min) at port sizes from 3/4" to 1-1/2".

Q: What port sizes are available?

A: The High-Capacity Series is available in 3/4", 1", 1-1/4", and 1-1/2" NPT port sizes.

Q: What is the difference between wick-feed and sight-feed lubricators in the High-Capacity Series?

A: The wick-feed lubricator uses an internal absorbent wick to deliver oil into the compressed air stream. The delivery rate is adjusted internally, providing a tamper-resistant oil delivery mechanism. The sight-feed lubricator has an external sight tube or window through which oil droplets entering the air stream are visible, allowing direct observation and adjustment of the delivery rate during normal operation. Select sight-feed when visual confirmation of lubrication is required; select wick-feed for tamper-resistant applications.

Q: What is the external automatic drain?

A: The external automatic drain uses a float mechanism inside the filter bowl to trigger a valve that expels condensate through an external piped outlet rather than discharging directly below the filter. This allows condensate to be piped to a remote drain location, which is essential for overhead-mounted FRL installations, enclosed enclosures where floor drainage is not available, or applications where condensate must be collected for disposal rather than discharged at the filter location.

Q: What is the maximum operating pressure of the High-Capacity Series?

A: Maximum operating pressure is 150 psig (10 bar) for units with polycarbonate bowls and 250 psig (17 bar) for units with metal bowls. The 250 psig metal bowl rating is the highest in the ROSS Controls FRL product line.

Q: When should I select the metal bowl over the polycarbonate bowl?

A: Select the metal bowl when operating pressure exceeds 150 psig (requiring the 250 psig-rated metal bowl), when ambient temperature exceeds 125 degrees F (metal bowl rated to 150 degrees F), or when the installation environment involves significant mechanical impact hazard, chemical splash, or aggressive conditions where polycarbonate bowl integrity may be at risk.

Q: Is the High-Capacity Series designed for modular or inline mounting?

A: The High-Capacity Series is designed for inline mounting. Each component is installed directly in the compressed air supply line using the port connections, with the pipe providing the primary mechanical support. This differs from the modular mounting approach of the mid-size and full-size series.

Q: What temperature range is the High-Capacity Series rated for?

A: Polycarbonate bowl units are rated for 40 to 125 degrees F (4 to 52 degrees C). Metal bowl units are rated for 40 to 150 degrees F (4 to 66 degrees C).

Q: What type of regulator does the High-Capacity Series use?

A: The High-Capacity Series uses a piston-type regulator. Piston-type designs are well-suited for high-flow applications where robust mechanical regulation performance and resistance to high differential pressure are priorities. Self-relieving is standard; non-relieving is available as an option.

Q: Can I install just a filter or just a regulator from the High-Capacity Series?

A: Yes. Each filter, regulator, and lubricator component is available as an individual unit. They can be installed as standalone components or combined into a complete three-unit FRL inline assembly.

Q: What filtration grades are available for the High-Capacity Series filter?

A: The High-Capacity Series filter is available with 5-micron and 40-micron particulate removal elements. For applications requiring oil aerosol removal, coalescing elements are available. Consult the ROSS Controls catalog or contact ROSS at (800) 438-7677 for available filtration grades at each port size.

Q: How often should the High-Capacity Series filter element be replaced?

A: Replace the filter element when the differential pressure across the filter reaches the service threshold specified in the ROSS Controls catalog or installation instructions for the High-Capacity Series. In high-contamination environments, inspect more frequently. Install a differential pressure gauge across the filter to enable condition-based element replacement.

Q: Are catalog drawings and technical data available?

A: Complete catalog part numbers, dimensional drawings, and technical data for the High-Capacity Series are available at rosscontrols.com. Contact ROSS Controls at (800) 438-7677 for configuration and technical support.

Installation & Maintenance Guidelines

Mount the High-Capacity Series FRL components with the bowls in the downward (vertical) position to allow condensate to collect at the drain for proper expulsion.
Support the FRL assembly with appropriate pipe support brackets or mounting hardware at 1" and larger port sizes where the component weight and pipe diameter require additional mechanical support beyond the threaded pipe connection.
Install components in the correct flow sequence: filter (inlet) - regulator (middle) - lubricator (outlet).
Verify that the flow direction arrow on each unit body is aligned with the compressed air flow direction before making port connections.
Apply PTFE thread sealant or pipe thread compound appropriate for compressed air service to all NPT connections. Tighten to the torque specified in the ROSS Controls installation instructions.
For 1" and larger port connections, ensure that the upstream piping is adequately supported to avoid imposing bending loads on the FRL component bodies.
Pressurize the system gradually and inspect all port connections and bowl seals for air leakage with an approved leak detection solution.
For external automatic drain installations, connect the drain outlet to an appropriate piped drain or condensate collection system. The drain line must be free-draining with no restrictions that would prevent condensate expulsion.
For electronic drain installations, configure the timer or demand controller per the application condensate volume and the drain controller installation instructions.
Set regulated output pressure on the piston regulator by unlocking the adjustment knob, rotating to the target pressure on the gauge, and locking the knob at the set point.
Select and install the appropriate lubricator (wick-feed or sight-feed) per the application lubrication monitoring requirements. Fill the bowl to the maximum fill level with recommended petroleum-based oil (ISO 32 or lighter).
For sight-feed lubricators, adjust the needle valve to the desired delivery rate while observing the sight tube. Typical starting rate is approximately one drop per minute per 5 to 10 scfm of downstream air consumption.
Replace filter elements at the specified differential pressure threshold or scheduled maintenance interval. Shut off inlet pressure and depressurize the system before removing the bowl for element replacement.

Warranty & Global Support

ROSS Controls provides a one-year warranty on all products covering defects in material and workmanship from the date of purchase.

Technical support and product configuration assistance is available through ROSS Controls at (800) 438-7677 or rosscontrols.com.

Global support is available through ROSS offices in the USA (Ferndale, Michigan headquarters), Canada, Brazil, Germany, France, United Kingdom, India, China, and Japan.

For complete technical data, dimensional drawings, and ordering information for the High-Capacity Series FRL combination, visit rosscontrols.com or contact ROSS Controls technical sales.
